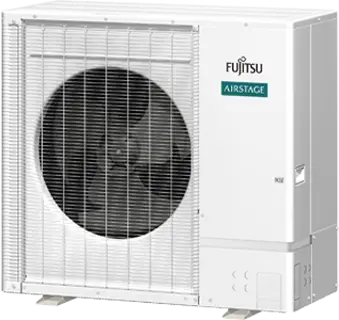

AIRSTAGE VRF Systems AIRSTAGE J-7 Outdoor Units Technical Information
Features
Energy Efficient
Ratings reach up to 23.1 SEER2 and 10.3 HSPF2. R-32 refrigerant has a global warming potential (GWP) of 675.
Compact Size
With a smaller footprint and single fan design, these new J-7 R-32 outdoor units deliver premium performance in a compact footprint. The single-fan chassis measures 39-11/16 in. (H) × 42-1/2 in. (W) × 18-7/8 in. (D).
Year-Round Comfort
Cooling from 23°F to 126°F (-5°C to 52°C) and heating from -15°F to 70°F (-26°C to 21°C). A factory-installed base pan heater supports cold-climate operation.
Quiet Operation
Ductless heat pumps and air conditioners are comprised of an indoor and outdoor unit, allowing for a peaceful inside environment by enabling components like compressors and motors outdoors to be installed outside.
Specifications
- Sound Level: As low as 55 dB(A)
- IEER: Up to 19.20
- EER: Up to 9.25
- Cooling Operating Range: 23°F to 126°F (-5°C to 52°C)
- Heating Operation Range: -15°F to 70°F (-26°C to 21°C)
Warranty
Come standard with a 7-Year Compressor/5-Year Parts warranty.
J-Series systems installed in residential or commercial applications with four or fewer outdoor condensers can receive a 10-year parts and 10-year compressor warranty through online registration, with the invoice uploaded. This applies to all J-Series models, including J-IIIL.
J-IV, J-IVS, J-7, and J-7S systems installed by an Elite Tier or above contractor and registered online qualify for a 12-year parts and 12-year compressor warranty. J-IIIL systems are not eligible for the 12-year warranty.
- Important:
- J-Series installations with five or more outdoor systems must be commissioned.

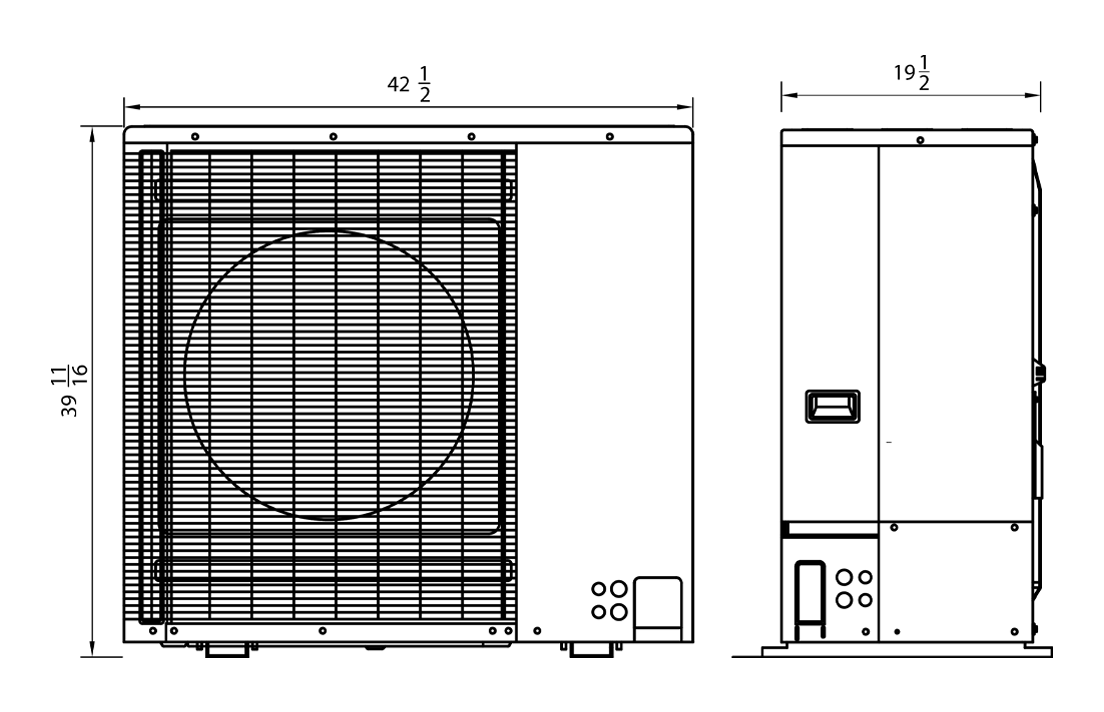

Dimensions
3 Ton, 4 Ton, & 5 Ton
